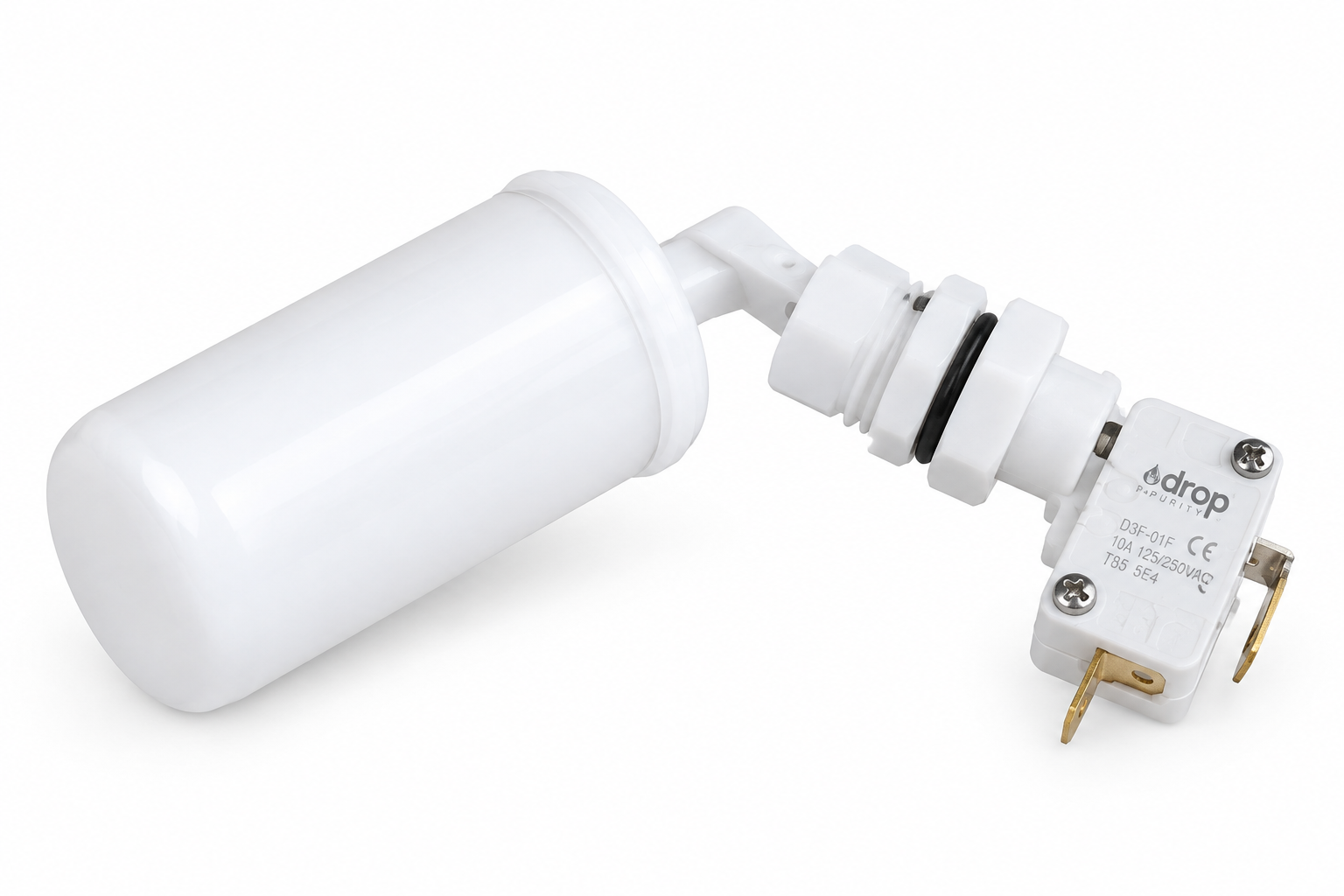

RO Float Switch

Inclusive of 18% GST • Free standard delivery on orders above ₹499

Role in the Purification Chain

The water level watchdog inside your purifier's storage tank. It prevents water from overflowing onto your kitchen counters by shutting off electrical power to the booster pump and solenoid valve as soon as the tank is full.

Physical & Mechanical Principle

A buoyant food-grade float ball containing an internal permanent magnet rises with the water level. At the top limit, the magnet trips a hermetically sealed reed micro-switch, breaking the control circuit and stopping the machine.

The ₹800 Float Switch Markup

When a purifier overflows, technicians claim the entire electronic motherboard or control board is blown, charging ₹1,500. In reality, the ₹49 float switch simply has a worn micro-switch or is stuck on mineral scale.

Lift the float ball with your finger while machine runs. If you hear a crisp click and the pump stops, the float is fine. If it doesn't click, swap this ₹49 part yourself in 5 minutes.

Unplug Purifier Power

Always disconnect power before opening the upper storage cabinet.

Access Float Bracket

Locate the float switch mounted on the upper lip of the internal water tank.

Disconnect Two Control Wires

Unplug the two spade terminals or wire nuts connecting the switch.

Snap In New Float

Fasten the new float switch into the bracket. Ensure the float ball moves up and down freely without catching on tank ribs.

Fixing an Overflowing Water Purifier Tank in 3 Minutes

How to test, clean, and replace a faulty float switch to stop water from leaking onto the floor.

Why is my purifier not turning on even when the tank is empty?

If the float switch is stuck in the UP position by calcium scale, the machine thinks the tank is full. Cleaning or replacing the switch restores operation.
